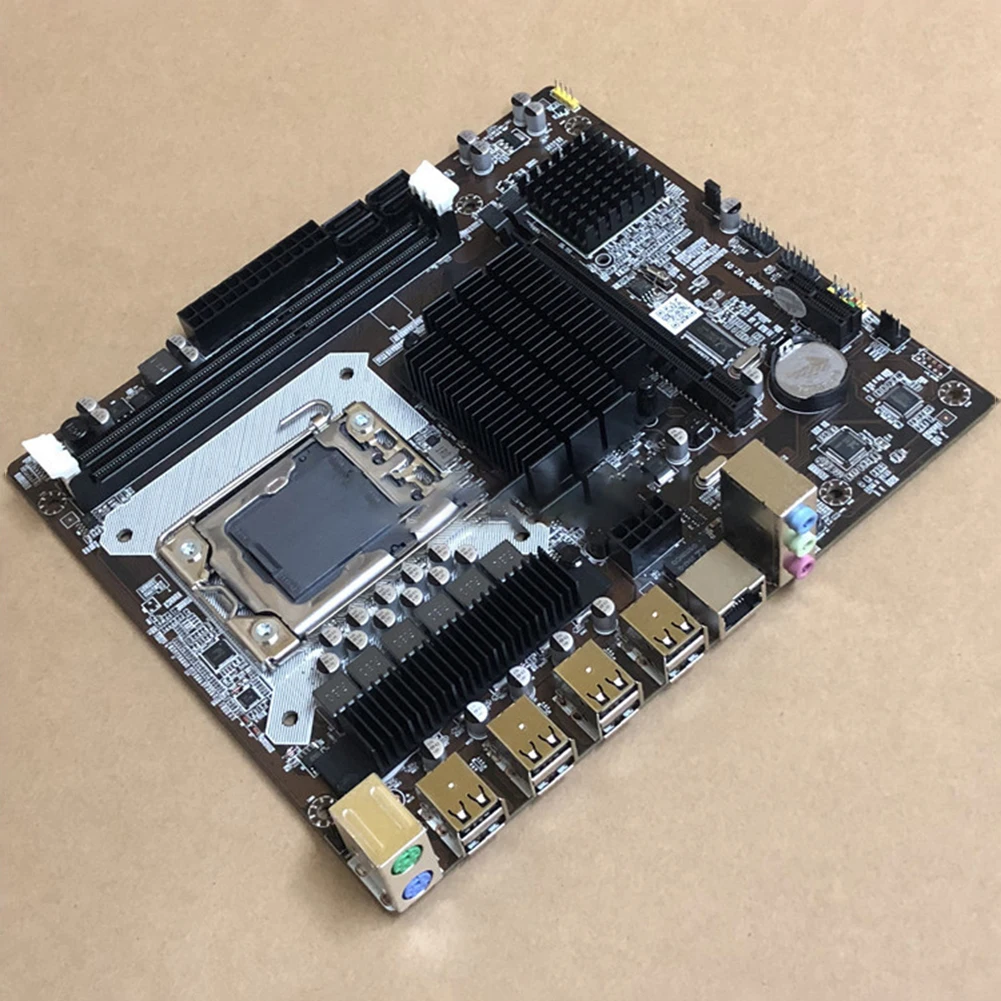

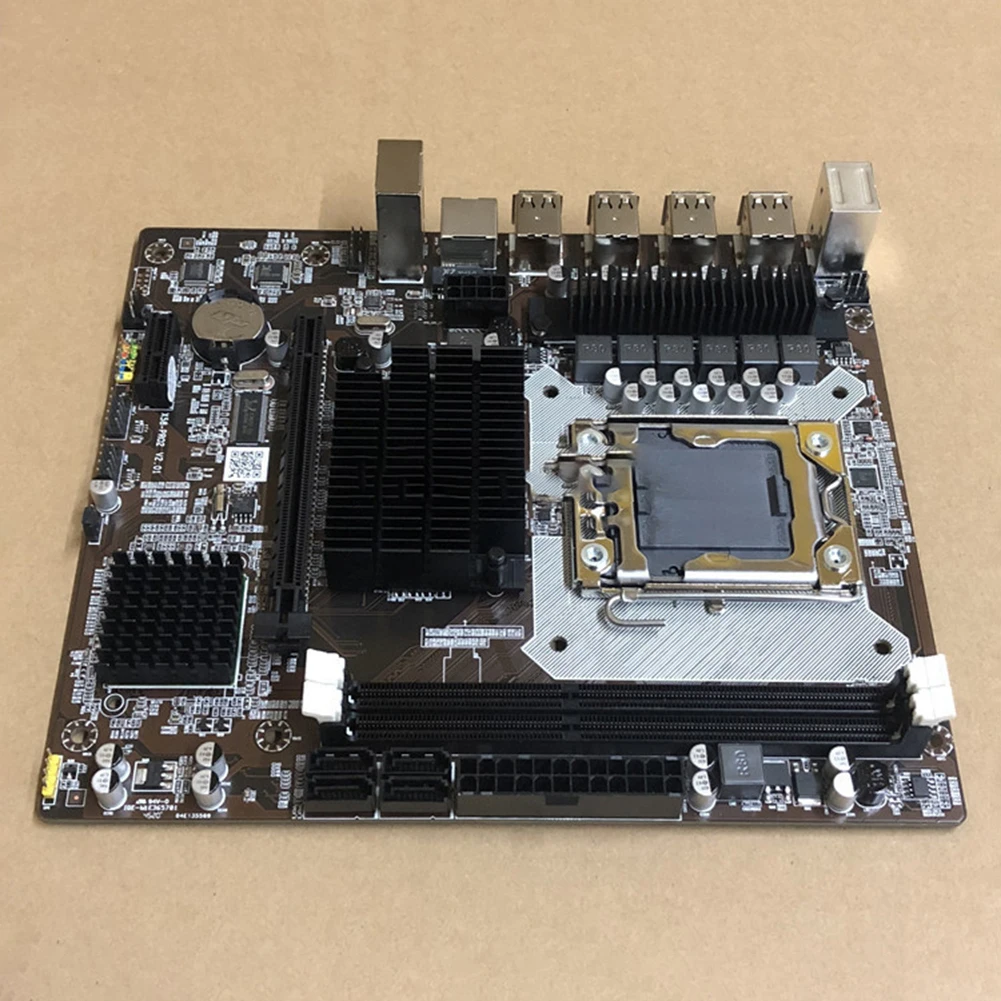

Motherboard X58 Desktop Board LGA1366 Support Intel CPU L5640 E5520 E5540 X5550 RX Graphics Cards 8Gb ECC DDR3 RAM Memory Combo

X58 Desktop Motherboard for LGA 1366 Support DDR3 ECC REG E5520 X5650 Server Memory CPU Mainboard
Feature:
1. Brand new X58 1366-pin gaming motherboard, supporting 90W 115W quad-core/six-core CPU such as E5520, E5540, X5550, X5570, L5638, L5640, E5645, X5650, X5660.
2. Support normal DDR3 memory, REG/ECC server memory.
3. Support the new series of RX graphics cards.
4. 5+2 ultra-stable CPU power supply, 4-layer PCB backplane.

Specification:
Model: X58
Applicable type: Desktop
Motherboard architecture: microATX
Chip manufacturer: Intel
Chipset series: X58
CPU slot type: LGA 1366
Supported CPU type: 1366
Front end bus frequency: 1600 (MHz)
Onboard sound card: Yes
Onboard network card: Yes
Graphics card: independent graphics card
Support graphics card standard: PCI Express 16x
Supported memory type: DDR3
Hard disk interface: S-ATA II
Number of USB interfaces: 8
Memory channel: dual channel
Maximum memory capacity: 32g
Multi graphics card support: not supported
Disk array supported: not supported
Number of network cards supported: 1

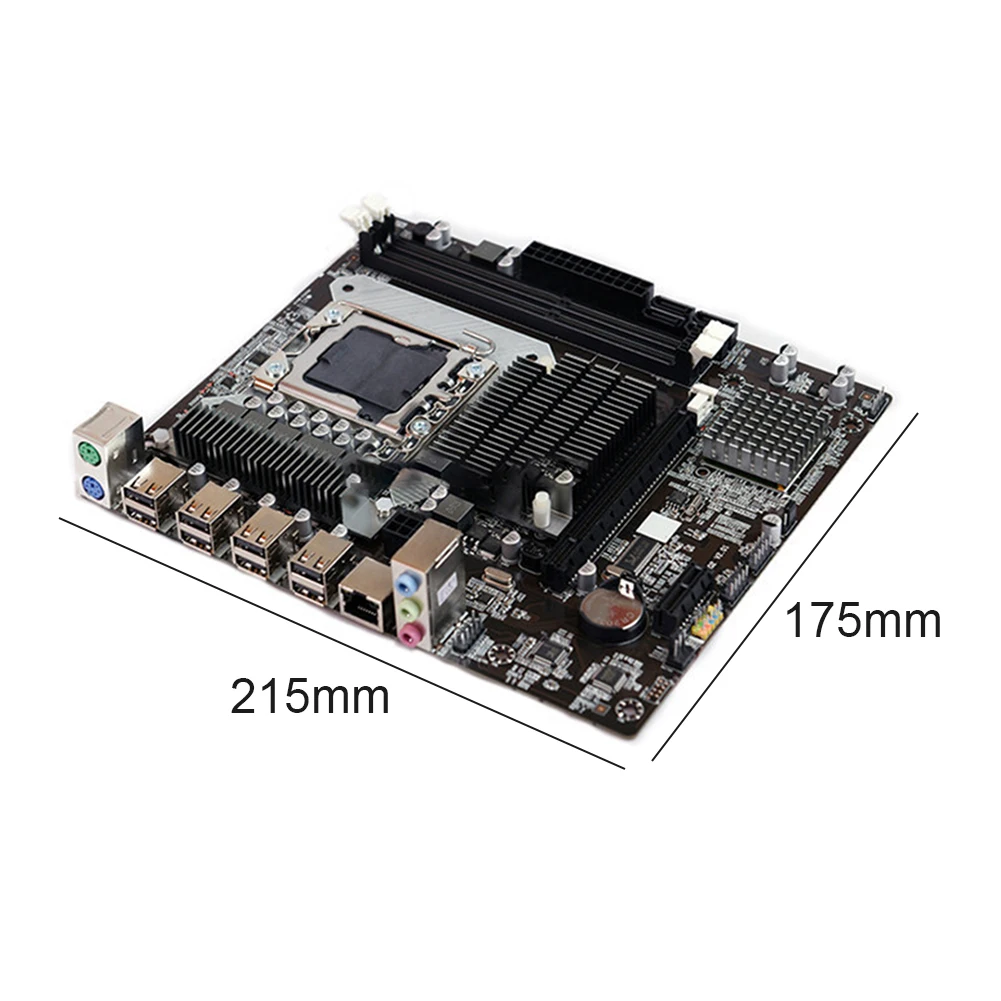

Product size: 215 * 175mm/8.5*6.9in

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.


1 X Motherboard
